Kubota L3650 Engine


Kubota L3650 tractor photo
1990 - 1993
L50 Series
Compact Utility tractor
Series map:
L3450
L3650
36.7hp
40.5hp
Engine Detail
Kubota V1902-DI-X-AE
diesel
4-cylinder
liquid-cooled
Displacement113.6 ci
1.9 L
Bore/Stroke3.35x3.23 inches
85 x 82 mm
Power (gross)40.5 hp
30.2 kW
Fuel systemdirect injection
Rated RPM2600
Torque91.9 lb-ft
124.6 Nm
Starter volts12
Coolant capacity5.9 qts
5.6 L
Engine Oil

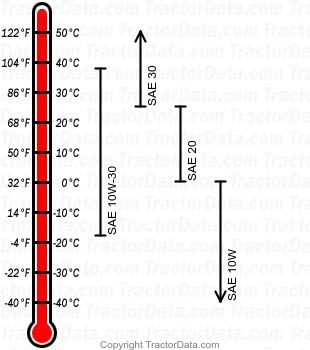

L3650 diesel engine oil chart
Oil capacity8.9 qts
8.4 L
Oil change200 h
