Kubota L3600 Engine


Kubota L3600 tractor photo
1994 - 1999
Grand L Series
Compact Utility tractor
Series map:
L3300
L3600
L4200
35.1hp
38.5hp
45.3hp
Engine Detail
Kubota V1903
diesel
4-cylinder
liquid-cooled
Displacement113.3 ci
1.9 L
Bore/Stroke3.1x3.6 inches
79 x 91 mm
Power (net)35.7 hp
26.6 kW
Power (gross)38.5 hp
28.7 kW
Fuel systemindirect injection
Rated RPM2600
Torque88.7 lb-ft
120.3 Nm
Starter volts12
Coolant capacity7.9 qts
7.5 L
Engine Oil

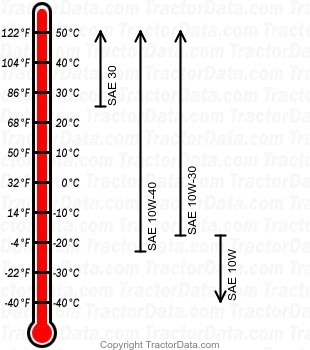

L3600 diesel engine oil chart
Oil capacity6.3 qts
6.0 L
Oil change100 h
