| | 1985 - 1992 |
| L Series | | Compact Utility tractor |
|
Series map:
L2550
L2850
29.5hp
34.0hp
| Transmission options |
| 8-speed mechanical shuttle |
| 8-speed partially synchronized |
| 8-speed power shift |
| Transmission |
| Type | mechanical shuttle
|
| Gears | 8 forward and 7 reverse
|
| Clutch | dry plates
|
| Oil capacity | 32.8 qts
31.0 L
|
| Four gears with high and low ranges, and mechanical shuttle. Fourth gear is locked out in high range. |
| Speeds |
|
| Shift Pattern |
 |
| Transmission |
| Type | partially synchronized
|
| Gears | 8 forward and 7 reverse
|
| Oil capacity | 32.8 qts
31.0 L
|
| Four gears with high and low ranges, and mechanical shuttle. Synchronized shifting between gears 3-4 in both ranges. |

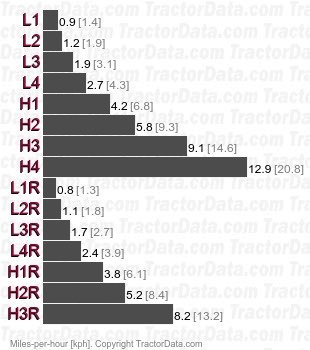

| Speeds |
|
| Transmission |
| Transmission | Glide Shift
|
| Type | power shift
|
| Gears | 8 forward and reverse
|
| Clutch | wet disc
|
| With 12.4-24 rear tires. |

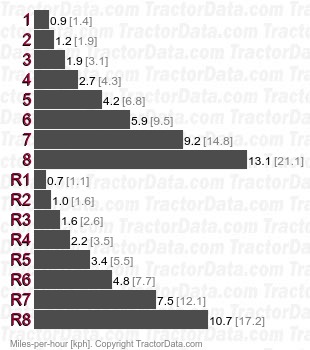

| Speeds |
|
