Kubota L2650
| | 1991 - 1993 |
| L50 Series | | Compact Utility tractor |
|
Series map:
L2250
L2650
26.5hp
29.0hp
| Production |
| Manufacturer | Kubota
|
| Compact Utility tractor |
| Kubota L2650 Power |
| Engine (gross) | 29 hp
21.6 kW
|
| PTO (claimed) | 23.5 hp
17.5 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | mechanical rear lock
|
| Steering | power
|
| Wet disc brakes |
| Two-post ROPS. Optional canopy. |
| Capacity |
| Fuel | 7.7 gal
29.1 L
|
| Hydraulic system | 7.5 gal
28.4 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 7.5 gal
28.4 L
|
| Pressure | 2490 psi
171.7 bar
|
| Pump flow | 8.2 gpm
31.0 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control with optional draft control
|
| Rear lift (at ends) | 2,645 lbs
1199 kg
|
| Rear lift (at 24"/610mm) | 1,985 lbs
900 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmssion
|
| | live (optional)
|
| Rear PTO Type | 540/1000 (1.375)
|
| Mid PTO | optional
|
| Mid PTO Type | 1080/2000
|

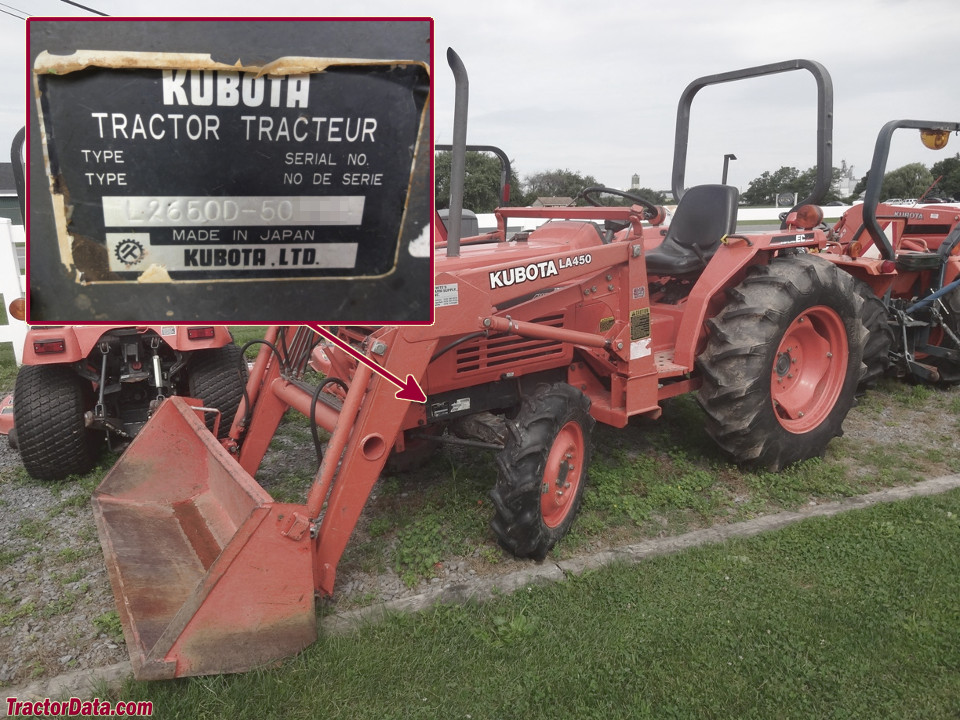

| L2650 Serial Number Location |
 |
| Serial number decal on the left side of the L2650 tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Battery CCA | 490
|
| Battery volts | 12
|
| References |
 |
| Backhoes published in 1992, by Kubota |
| Backhoes published in 1994, by Kubota |
| Mid-Mount Mowers B/L Series published in 1994, by Kubota* |
| Front Loaders B, L and M-Series published in 1994, by Kubota* |
| Product Catalog published in 1990, by Kubota |
| Diesel Tractors L2350DT, L2950DT, L3450DT and L3650T/DT published in 1991, by Kubota |
| Diesel Tractors L2350/L2650/L2950/L3450/L3650 published in 1994, by Kubota |
| Operator's Manual Models L2650 - L2950 - L3450 - L3650 (35080-19713) published in 2002 |
| New Product Guide L2650/L2950/L3450/L3650 published in 1990, by Kubota |
| *Publication contains known errors. |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on January 24, 2023 |
