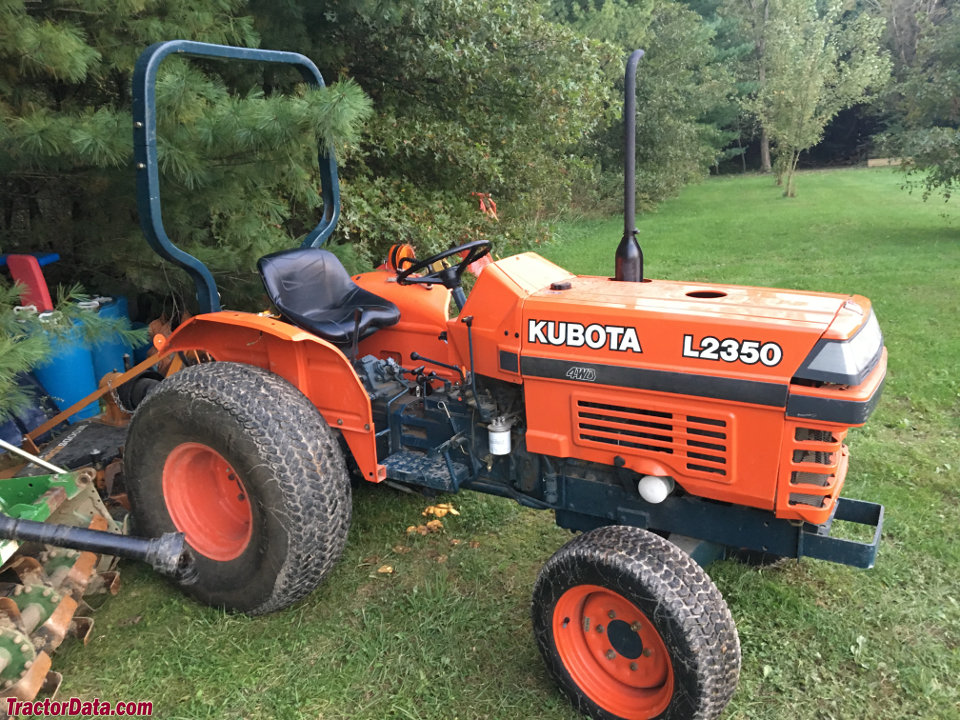

Kubota L2350
| | 1991 - 1998 |
| L50 Series | | Compact Utility tractor |
|
| Production |
| Manufacturer | Kubota
|
| Compact Utility tractor |
| Variants |
| L2350F | 2WD
|
| L2350DT | 4WD
|
| Kubota L2350 Power |
| Engine (gross) | 25 hp
18.6 kW
|
| PTO (claimed) | 20.5 hp
15.3 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Wet disc brakes |
| Two-post ROPS. |
| Capacity |
| Fuel | 7.7 gal
29.1 L
|
| Hydraulic system | 7.4 gal
28.0 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 7.4 gal
28.0 L
|
| Pump flow | 4.4 gpm
16.7 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 1433 lbs
650 kg
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear PTO Type | 540
|
| L2350 Serial Number Location |
 |
| Serial number plate on the left side of the L2350 tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| References |
 |
| Backhoes published in 1992, by Kubota |
| Backhoes published in 1994, by Kubota |
| Mid-Mount Mowers B/L Series published in 1994, by Kubota* |
| Front Loaders B, L and M-Series published in 1994, by Kubota* |
| 1999 Products published by Kubota |
| Diesel Tractors L2350/L2650/L2950/L3450/L3650 published in 1994, by Kubota |
| *Publication contains known errors. |
