Kubota B8200 Transmission


Kubota B8200 tractor photo
1983 - 1990
Compact Utility tractor
Series map:
B7200
B8200
B9200
17.0hp
19.0hp
22.5hp
Transmission options
hydrostatic
9-speed gear
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Oil capacity19 qts
18.0 L
Speeds
With 8.3-24 rear tires.

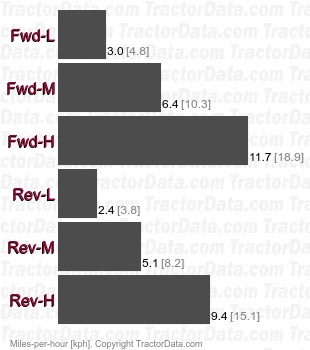

B8200  hydrostatic speeds
Transmission
Typegear
Gears9 forward and 3 reverse
Clutch7.9-inch dry disc
Oil capacity19 qts
18.0 L
Three gears (1-3) plus reverse in three ranges (L-M-H).
Speeds
With 8.3-24 rear tires.

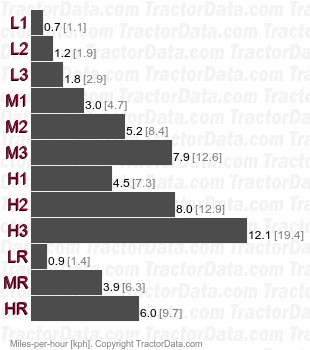

B8200  gear speeds

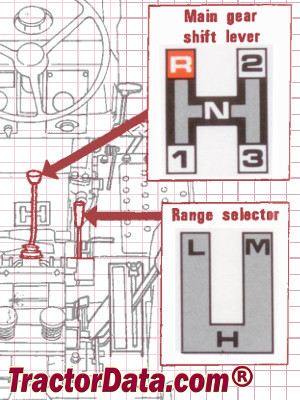

Shift Pattern
Kubota B8200 transmission controls
