Kubota B6200 Transmission


Kubota B6200 tractor photo
1983 - 1992
B Series
Compact Utility tractor
Series map:
B5200
B6200
B7200
13.0hp
15.0hp
17.0hp
Transmission
Typegear
Gears6 forward and 2 reverse
Clutch7.2-inch dry plate
Oil capacity12.7 qts
12.0 L
Three gears (1-3) plus reverse with high and low ranges.

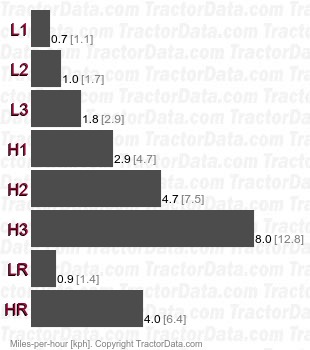

Speeds
With 8-16 rear tires.
B6200  gear speeds

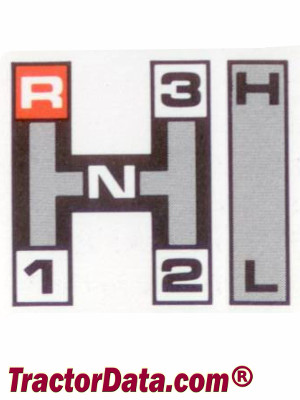

Shift Pattern
Kubota B6200 transmission controls
