Kubota B5200 Transmission



Kubota B5200 tractor photo
1983 - 1996
B Series
Series map:
B4200
B5200
B6200
12.5hp
13.0hp
15.0hp
Transmission
Typegear
Gears6 forward and 2 reverse
Clutchdry plate
Oil capacity12.7 qts
12.0 L
Three gears (1-3) plus reverse with high and low ranges.

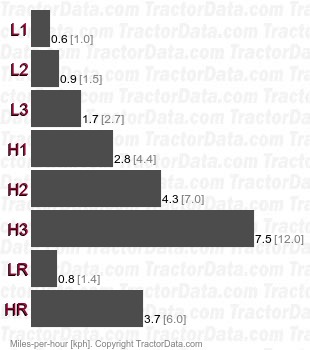

Speeds
With 7-16 rear tires.
B5200 gear speeds

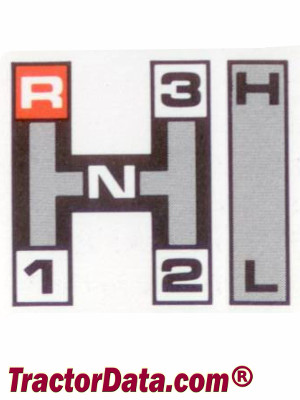

Shift Pattern
Kubota B5200 transmission controls
