Tractors > Kubota > B5100

Kubota B5100 Engine



Kubota B5100 tractor photo
1978 - 1984
Sub-Compact Utility tractor
Series map:
B5100
B6100
12.0hp
14.0hp
Engine Detail
Kubota Z500-1A
diesel
2-cylinder
liquid-cooled
Displacement31 ci
0.5 L
Bore/Stroke2.625x2.75 inches
67 x 70 mm
Power12 hp
8.9 kW
Pre-heatingglow plugs
Rated RPM3000
Starter volts12
Starter power1.1 hp
0.8 kW
Coolant capacity3.2 qts
3.0 L
Engine Oil

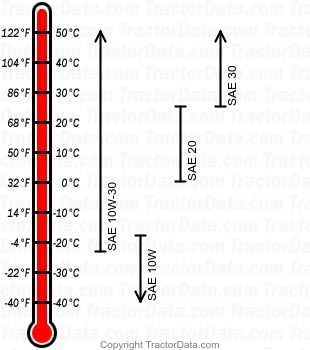

B5100 diesel engine oil chart
Oil capacity2.4 qts
2.3 L
Oil change75 h
