Kubota B1700
| | 1995 - 1999 |
| Compact Utility tractor |
|
Series map:
B1700
B2100
17.0hp
21.0hp
| Production |
| Manufacturer | Kubota
|
| Compact Utility tractor |
| Kubota B1700 Power |
| Engine (gross) | 17 hp
12.7 kW
|
| Gear PTO (claimed) | 14 hp
10.4 kW
|
| Hydro PTO (claimed) | 13 hp
9.7 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Steering | power
|
| Wet disc brakes |
| Two-post ROPS. |
| Capacity |
| Fuel | 6.3 gal
23.8 L
|
| Hydraulic system | 2.9 gal
11.0 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 2.9 gal
11.0 L
|
| Pump flow | 5.8 gpm
22.0 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 1280 lbs
580 kg
|
| Rear lift (at 24"/610mm) | 1015 lbs
460 kg
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2584
|
| Mid PTO Type | 2537 *Kubota 10-tooth
|
| Engine RPM | 2537@2600
|
| Electrical |
| Ground | negative
|
| Battery CCA | 390
|
| Battery volts | 12
|
| References |
 |
| 1999 Products published by Kubota |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 28, 2018 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

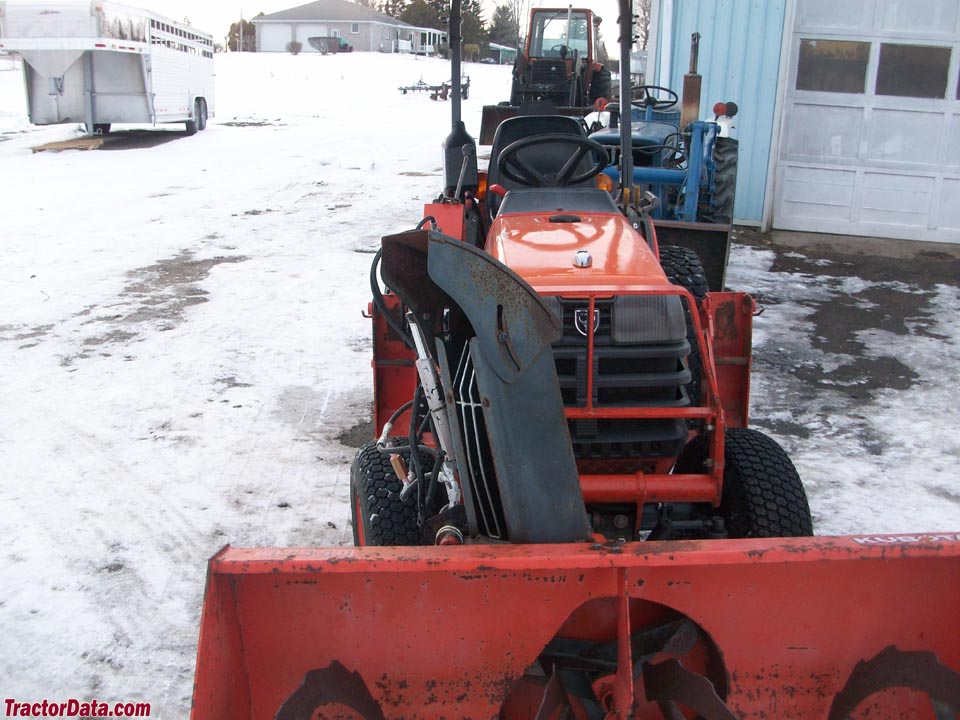

Kubota B1700 photos...
