John Deere 2750 Low-Profile Transmission


John Deere 2750 Low-Profile tractor photo
1983 - 1988
2050 Series
Orchard/Vineyard tractor
Transmission options
8-speed partially synchronized
16-speed partial powershift
12-speed partially synchronized
Transmission
TransmissionJohn Deere Top-Shaft Synchronized
Typepartially synchronized
Gears8 forward and 4 reverse
Four gears in two ranges, plus reverse range. Synchronized shifting between gears.

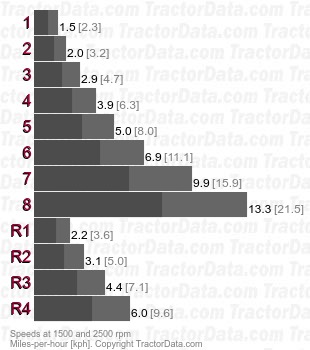

Speeds
With 18.4-30 rear tires.
2750 Low-Profile Top-Shaft Synchronized partially synchronized speeds
Transmission
TransmissionJohn Deere Hi-Lo Top-Shaft Synchronized
Typepartial powershift
Gears16 forward and 8 reverse
Four gears (1-4) in two ranges (I-II) and reverse (R) with two-speed power shift (rabbit/turtle).
Transmission
TransmissionJohn Deere TSS Creeper
Typepartially synchronized
Gears12 forward and 8 reverse
