| | 1997 - 2005 |
| M Series | | Utility tractor |
|
Series map:
M8200
M9000
85.3hp
92.1hp
| Transmission options |
| 8-speed synchronized |
| 8-speed power shuttle |
| Transmission |
| Type | synchronized
|
| Gears | 8 forward and reverse
|
| Clutch | dry disc
|
| Oil capacity | 54.8 qts
51.9 L
|
| Four gears (1-4) in two ranges. (low/high) with shuttle. |

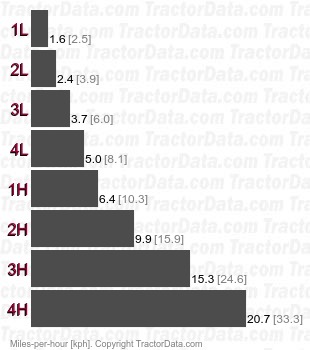

| Speeds |
|
| Transmission |
| Type | power shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 54.8 qts
51.9 L
|
| The hydraulic power shuttle transmission became available in 2003. A creeper option was also available increasing speeds to 12/12. |
| Speeds |
|
