Tractors > Kubota > M5400

Kubota M5400 Engine



Kubota M5400 tractor photo
1995 - 1999
M Series
Utility tractor
Series map:
M4700
M5400
51.0hp
58.0hp
Engine Detail
Kubota F2803
diesel
5-cylinder
liquid-cooled
Displacement167.6 ci
2.7 L
Bore/Stroke3.43x3.64 inches
87 x 92 mm
Power (net)54 hp
40.3 kW
Power (gross)58 hp
43.3 kW
Rated RPM2700
Torque129 lb-ft
174.9 Nm
Torque RPM1600
Starter volts12
Coolant capacity8.5 qts
8.0 L
Engine Oil

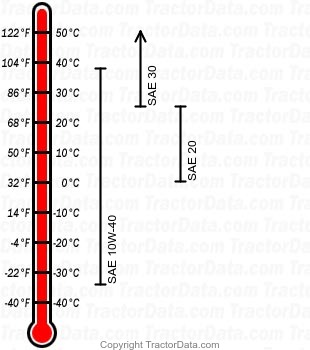

M5400 diesel engine oil chart
Oil capacity8.5 qts
8.0 L
Oil change100 h
