| | 1990 - 1995 |
| 9200 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
9230
9240
9250
235.0hp
235.0hp
300.0hp
| Transmission |
| Type | full power shift
|
| Gears | 12 forward and 3 reverse
|
| Clutch | hydraulic wet disc
|
| Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th). |

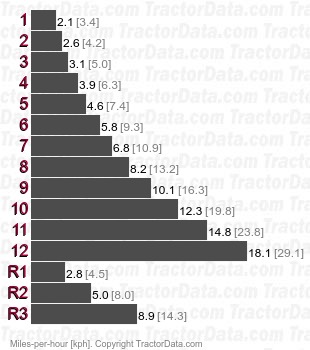

| Speeds |
| With 18.4x38 tires. |
|
| Shift Pattern |
 |
