Tractors > CaseIH > 8930

CaseIH 8930 Tests



CaseIH 8930 tractor photo
1997 - 1998
Magnum 8900 Series
Row-Crop tractor
Series map:
8920
8930
8940
172.2hp*
200.0hp*
227.8hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1735

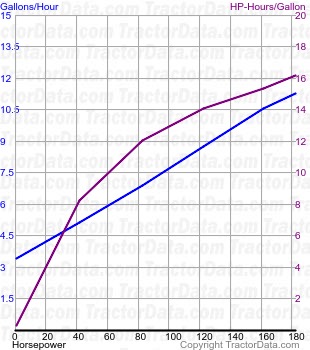

8930 fuel use from test 235
OCED Tractor Test 1735
Diesel 18-speed 4WD
September 8 - 25, 1997
Link: OCED Tractor Test 1735 file
PTO performance
Max power198.35 hp
147.9 kW
Fuel use11.2 gal/hour
42.4 l/hour
Power at rated engine speed182.08 hp
135.8 kW
Fuel use11.3 gal/hour
42.8 l/hour
Drawbar performance
Max power156.31 hp
116.6 kW
Fuel use11.3 gal/hour
42.8 l/hour
Gear 8 used for power test.
Max pull17533 lbs
7952 kg
Gear 5 used for pull test.
