| | 1997 - 1998 |
| Magnum 8900 Series | | Row-Crop tractor |
|
Series map:
8920
8930
8940
172.2hp*
200.0hp*
227.8hp*
*Estimated engine power for comparison only.
| Engine Detail |
| CDC |
| turbocharged intercooled diesel |
| 6-cylinder |
| liquid-cooled inline |
| Displacement | 504.5 ci
8.3 L
|
| Bore/Stroke | 4.488x5.315 inches
114 x 135 mm
|
| Fuel system | mechanical injection
|
| Air cleaner | dual dry element
|
| Compression | 16.5:1
|
| Rated RPM | 2200
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 22 qts
20.8 L
|
| Coolant capacity | 31 qts
29.3 L
|

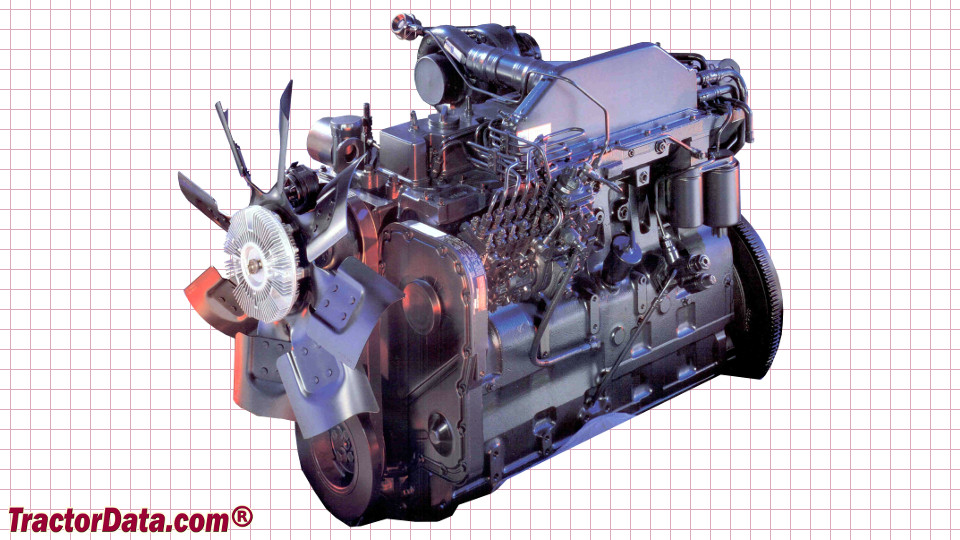

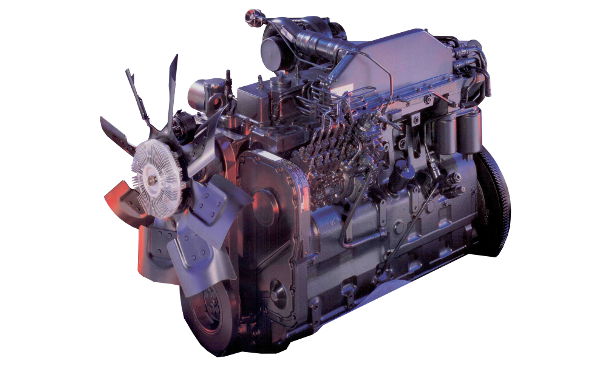

| CaseIH 8930 Engine |
 |
