| | 1994 - 1996 |
| Magnum 7200 Series | | Row-Crop tractor |
|
Series map:
7240
7250
216.7hp*
238.9hp*
*Estimated engine power for comparison only.
| Engine Detail |
| CDC |
| turbocharged intercooled diesel |
| 6-cylinder |
| liquid-cooled inline |
| Displacement | 504.5 ci
8.3 L
|
| Bore/Stroke | 4.488x5.315 inches
114 x 135 mm
|
| Fuel system | mechanical injection
|
| Air cleaner | dual paper elements
|
| Pre-heating | block heater OptOptional
|
| Compression | 16.5:1
|
| Rated RPM | 2200
|
| Starter volts | 12
|
| Oil capacity | 22 qts
20.8 L
|
| Coolant capacity | 31 qts
29.3 L
|

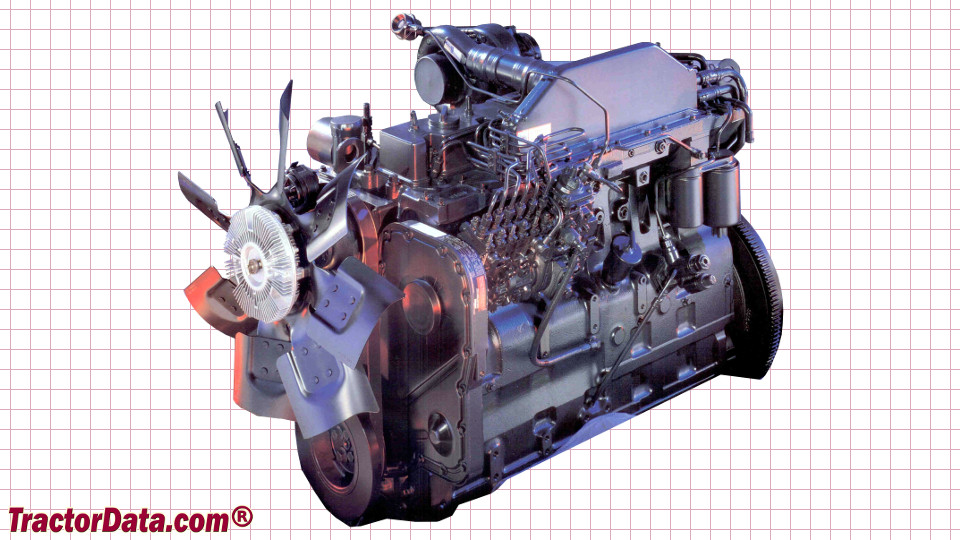

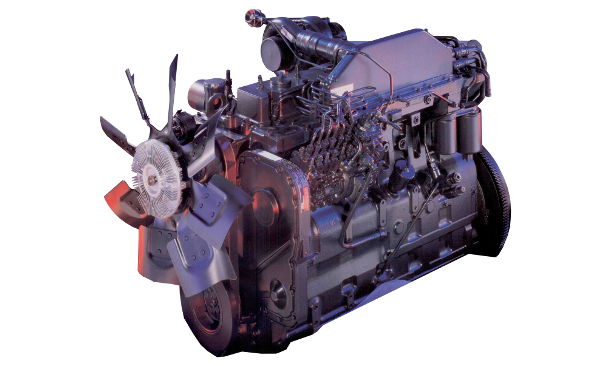

| CaseIH 7250 Engine |
 |
