Tractors > CaseIH > 7230

CaseIH 7230 Tests



CaseIH 7230 tractor photo
1994 - 1996
Magnum 7200 Series
Row-Crop tractor
Series map:
7220
7230
7240
172.2hp*
188.9hp*
216.7hp*
*Estimated engine power for comparison only.
Tractor Tests
OECD 1611: diesel 18-speed 4WD
OECD 1710: diesel 18-speed 4WD
OCED Tractor Test 1611

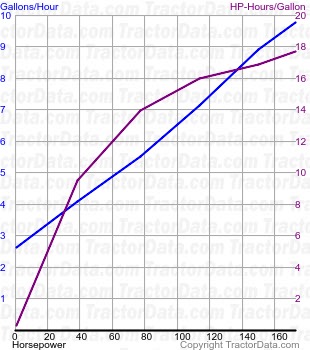

7230 fuel use from test 51
OCED Tractor Test 1611
Diesel 18-speed 4WD
July 1988 - 1988,
Link: OCED Tractor Test 1611 file
PTO performance
Max power179.10 hp
133.6 kW
Fuel use9.5 gal/hour
36.0 l/hour
Power at rated engine speed172.57 hp
128.7 kW
Fuel use9.7 gal/hour
36.7 l/hour
Drawbar performance
Max power155.35 hp
115.8 kW
Fuel use9.5 gal/hour
36.0 l/hour
Gear 9 used for power test.
Max pull20926 lbs
9492 kg
Gear 5 used for pull test.
OCED Tractor Test 1710

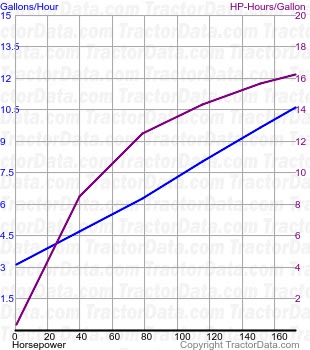

7230 fuel use from test 205
OCED Tractor Test 1710
Diesel 18-speed 4WD
May 1 - 10, 1996
Link: OCED Tractor Test 1710 file
PTO performance
Max power184.97 hp
137.9 kW
Fuel use10.2 gal/hour
38.6 l/hour
Power at rated engine speed172.41 hp
128.6 kW
Fuel use10.6 gal/hour
40.1 l/hour
Drawbar performance
Max power147.97 hp
110.3 kW
Fuel use10.6 gal/hour
40.1 l/hour
Gear 8 used for power test.
Max pull16884 lbs
7658 kg
Gear 4 used for pull test.
