CaseIH 7230 Engine


CaseIH 7230 tractor photo
1994 - 1996
Magnum 7200 Series
Row-Crop tractor
Series map:
7220
7230
7240
172.2hp*
188.9hp*
216.7hp*
*Estimated engine power for comparison only.
Engine Detail
CDC
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement504.5 ci
8.3 L
Bore/Stroke4.488x5.315 inches
114 x 135 mm
Fuel systemmechanical injection
Air cleanerdual paper elements
Pre-heatingblock heater OptOptional
Compression16.5:1
Rated RPM2200
Starter volts12
Oil capacity22 qts
20.8 L
Coolant capacity31 qts
29.3 L
CaseIH 7230 Engine

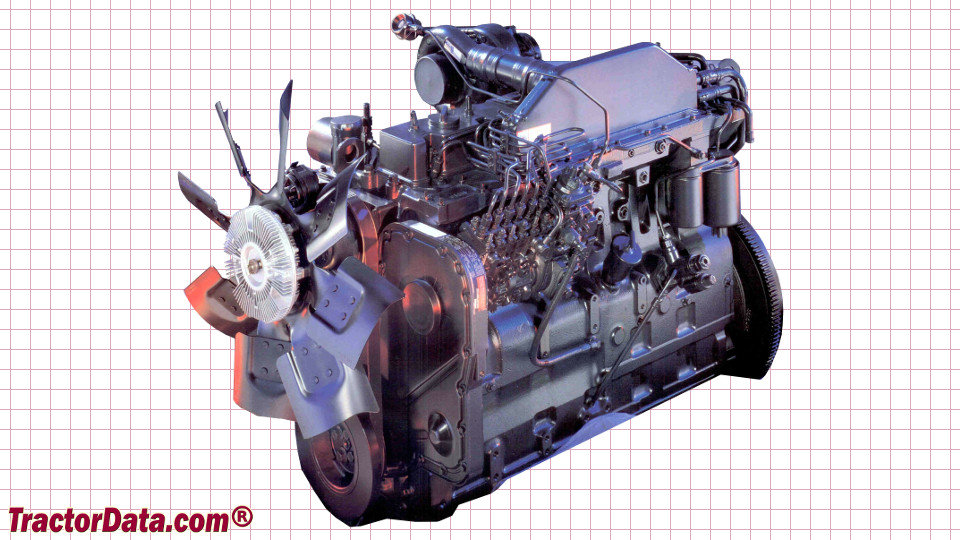

CaseIH 7230 engine image
