CaseIH 7220 Transmission


CaseIH 7220 tractor photo
1994 - 1996
Magnum 7200 Series
Row-Crop tractor
Series map:
7210
7220
7230
144.4hp*
172.2hp*
188.9hp*
*Estimated engine power for comparison only.
Transmission options
18-speed full power shift
24-speed creeper
Transmission
Typefull power shift
Gears18 forward and 4 reverse
Clutchhydraulic wet disc
Speeds

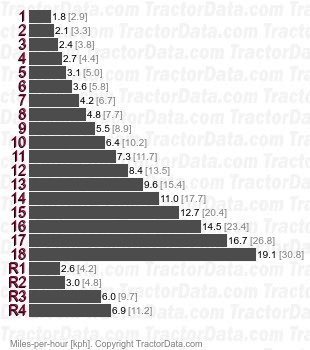

7220  full power shift speeds
Shift Pattern

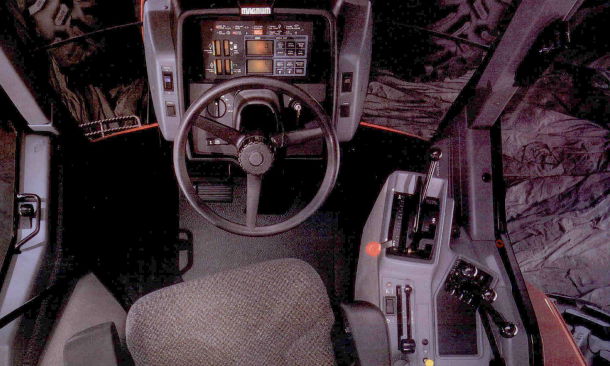

CaseIH 7220 transmission controls
Transmission
Typecreeper
Gears24 forward and 6 reverse
Speeds

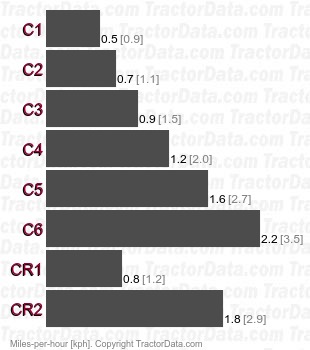

7220  creeper speeds
