Tractors > CaseIH > 7220

CaseIH 7220 Tests



CaseIH 7220 tractor photo
1994 - 1996
Magnum 7200 Series
Row-Crop tractor
Series map:
7210
7220
7230
144.4hp*
172.2hp*
188.9hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1709

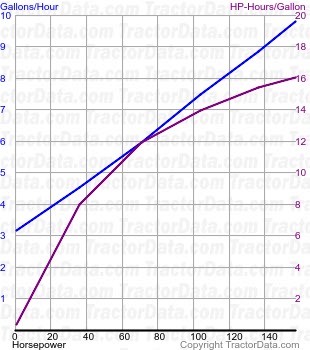

7220 fuel use from test 204
OCED Tractor Test 1709
Diesel 18-speed 4WD
April 30 - May 10, 1996
Link: OCED Tractor Test 1709 file
PTO performance
Max power168.56 hp
125.7 kW
Fuel use9.7 gal/hour
36.7 l/hour
Power at rated engine speed156.90 hp
117.0 kW
Fuel use9.8 gal/hour
37.1 l/hour
Drawbar performance
Max power132.79 hp
99.0 kW
Fuel use9.7 gal/hour
36.7 l/hour
Gear 8 used for power test.
Max pull16,832 lbs
7634 kg
Gear 4 used for pull test.
