| | 1987 - 1993 |
| Magnum Series | | Row-Crop tractor |
|
Series map:
7130
7140
7150
188.9hp*
216.7hp*
238.9hp*
*Estimated engine power for comparison only.
| Engine Detail |
| CDC |
| turbocharged intercooled diesel |
| 6-cylinder 12-valve |
| liquid-cooled vertical inline |
| Displacement | 504.5 ci
8.3 L
|
| Bore/Stroke | 4.488x5.315 inches
114 x 135 mm
|
| Cooling system | viscous fan
|
| Air cleaner | dual paper elements
|
| Pre-heating | ether starting aid
|
| | block heater (optional)
|
| | oil pan heater (optional)
|
| Compression | 16.5:1
|
| Rated RPM | 2200
|
| Starter volts | 12
|
| Oil capacity | 21 qts
19.9 L
|
| Oil change | 250 h
|
| Coolant capacity | 31 qts
29.3 L
|

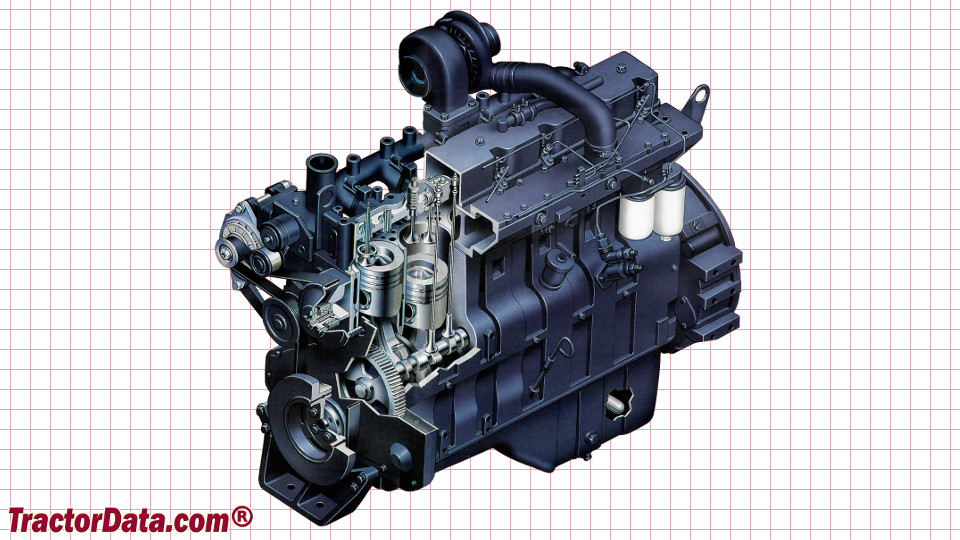

| CaseIH 7140 Engine |
 |
