| | 1987 - 1993 |
| Magnum Series | | Row-Crop tractor |
|
Series map:
7120
7130
7140
166.7hp*
188.9hp*
216.7hp*
*Estimated engine power for comparison only.
| Transmission options |
| 18-speed full power shift |
| 24-speed powershift with creeper |
| Transmission |
| Manufacturer | CaseIH
|
| Type | full power shift
|
| Gears | 18 forward and 2 reverse
|
| Clutch | hydraulic wet disc
|
| Full-range power shift transmission operated with a single right-hand control lever. |

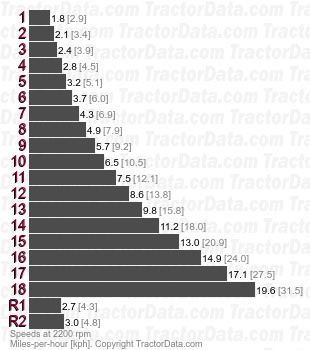

| Speeds |
| With 18.4x42 rear tires. |
|
| Transmission |
| Manufacturer | CaseIH
|
| Type | powershift with creeper
|
| Gears | 24 forward and 3 reverse
|
| Clutch | hydraulic wet disc
|

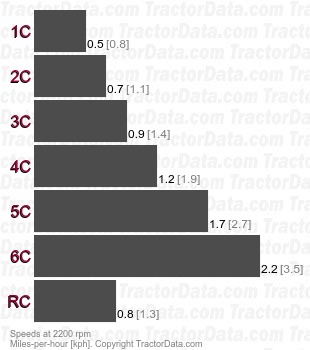

| The optional creeper range adds an additional six forward gears and one reverse to the Magnum power shift transmission. |
| Speeds |
| With 18.4x42 rear tires. |
|
| Transmission |
| Manufacturer | CaseIH
|
| Type | full power shift
|
| Gears | 18 forward and 4 reverse
|
| Clutch | hydraulic wet disc
|
| Starting with the 1990 model year an additional two reverse gears were added to the Magnum power shift transmission. |
| Shift Pattern |
 |
