Tractors > CaseIH > 7110

CaseIH 7110 Tests



CaseIH 7110 tractor photo
1987 - 1993
Magnum Series
Row-Crop tractor
Series map:
7110
7120
144.4hp*
166.7hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1609

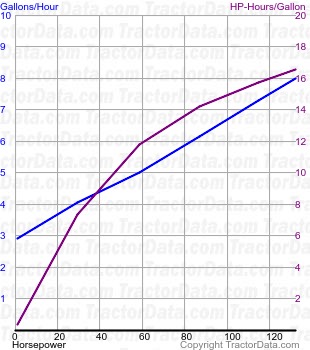

7110 fuel use from test 49
OCED Tractor Test 1609
Diesel 18-speed 4WD
June 1 - July 1, 1988
Link: OCED Tractor Test 1609 file
PTO performance
Max power132.31 hp
98.7 kW
Fuel use7.7 gal/hour
29.1 l/hour
Power at rated engine speed131.97 hp
98.4 kW
Fuel use8.0 gal/hour
30.3 l/hour
Drawbar performance
Max power116.84 hp
87.1 kW
Fuel use7.8 gal/hour
29.5 l/hour
Gear 9 used for power test.
Max pull15,498 lbs
7029 kg
Gear 4 used for pull test.
