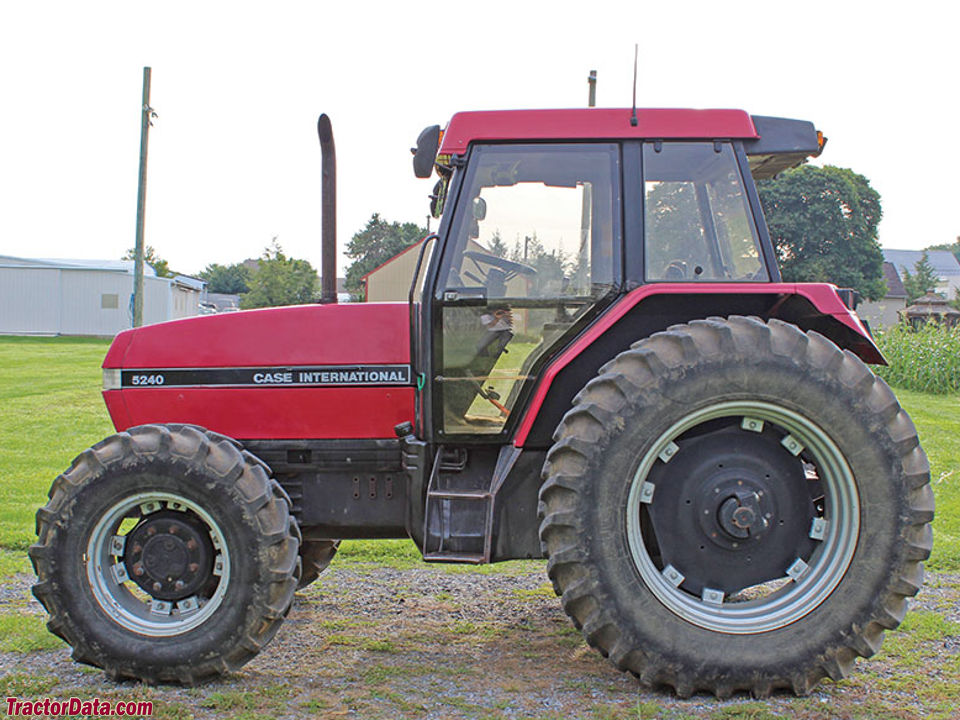

CaseIH 5240 Maxxum
| | 1992 - 1997 |
| Maxxum Series |
|
Series map:
5230
5240
5250
100.0hp*
111.1hp*
124.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | CaseIH
|
| Original price was $42,300 in 1997 |
| CaseIH 5240 Power |
| PTO (claimed) | 100 hp
74.6 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | electro-hydraulic rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Two-post fixed ROPS. Cab optional with air-conditioning. |
| Hydraulics |
| Type | closed center pressure-flow compensated
|
| Pressure | 2600 psi
179.3 bar
|
| Valves | 1 to 3
|
| Pump flow | 20 gpm
75.7 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | lower-link draft sensing
|
| Rear lift | 7700 lbs
3492 kg
|
| Front Hitch | II OptOptional
|
| Front lift (at 24"/610mm) | 5200 lbs
2358 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic wet disc
|
| Rear PTO Type | 540/1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 65
|
| | 95 OptOptional
|
| Batteries | 1
|
| | 2 OptOptional
|
| Battery volts | 12
|
| References |
 |
| Maxxum Tractors published in 1992, by CaseIH |
