| | 1992 - 1997 |
| Maxxum Series |
|
Series map:
5230
5240
5250
100.0hp*
111.1hp*
124.4hp*
*Estimated engine power for comparison only.
| Transmission options |
| 16-speed synchronized |
| 16-speed 4-speed power shift |
| Transmission |
| Type | synchronized
|
| Gears | 16 forward and 12 reverse
|

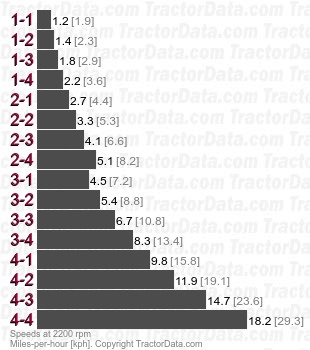

| Speeds |
| With 16.9-38 rear tires. Reverse speeds are 22% faster than forward. |
|
| Transmission |
| Type | 4-speed power shift
|
| Gears | 16 forward and 12 reverse
|
| Four power shift gears in four synchronized ranges and shuttle shifting. |
