| | 1990 - 1991 |
| Maxxum Series | | Utility tractor |
|
Series map:
5130
5140
99.0hp
108.5hp
| Transmission options |
| 16-speed fully synchronized |
| 16-speed partial power shift |
| 24-speed creeper |
| Transmission |
| Type | fully synchronized
|
| Gears | 16 forward and 12 reverse
|
| Four speeds (1-4) in four ranges (I-IV). Synchronized shifting between speeds and ranges with the clutch. Power shuttle shifting with column-mounted left-hand reverser lever. |
| Speeds |
| With 16.9-38 rear tires. |
|
| Transmission |
| Type | partial power shift
|
| Gears | 16 forward and 12 reverse
|
| Four speeds (1-4) in four ranges (I-IV). Power shift between speeds in range. Ranges are synchronized with clutch. Power shuttle shifting with column-mounted left-hand reverser lever. |

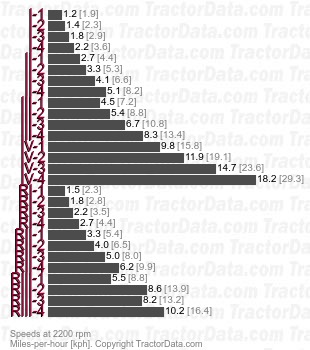

| Speeds |
| With 16.9-38 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 24 forward and 20 reverse
|
| The optional creeper range could be added to the synchronized or power shift transmission. Creeper adds an additional eight (8) gears forward and reverse. |

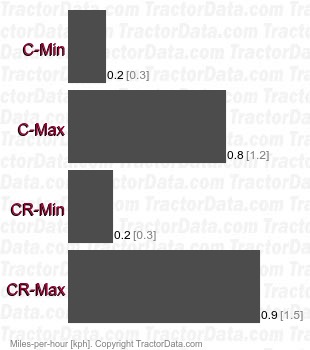

| Speeds |
| With 16.9-38 rear tires. |
|
