CaseIH 5130 Maxxum Transmission


CaseIH 5130 Maxxum tractor photo
1990 - 1991
Maxxum Series
Utility tractor
Series map:
5120
5130
5140
88.0hp
99.0hp
108.5hp
Transmission options
16-speed fully synchronized
16-speed partial power shift
24-speed creeper
Transmission
Typefully synchronized
Gears16 forward and 12 reverse
Four speeds (1-4) in four ranges (I-IV). Synchronized shifting between speeds and ranges with the clutch. Power shuttle shifting with column-mounted left-hand reverser lever.
Speeds
With 16.9-38 rear tires.
5130 Maxxum  fully synchronized speeds
Transmission
Typepartial power shift
Gears16 forward and 12 reverse
Four speeds (1-4) in four ranges (I-IV). Power shift between speeds in range. Ranges are synchronized with clutch. Power shuttle shifting with column-mounted left-hand reverser lever.
Speeds
With 16.9-38 rear tires.
5130 Maxxum  partial power shift speeds
Transmission
Typecreeper
Gears24 forward and 20 reverse
The optional creeper range could be added to the synchronized or power shift transmission. Creeper adds an additional eight (8) gears forward and reverse.
Speeds
With 16.9-38 rear tires.

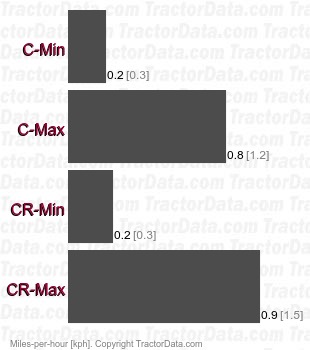

5130 Maxxum  creeper speeds
