CaseIH 4994 Transmission


CaseIH 4994 tractor photo
1984 - 1987
4WD 94 Series
Four-wheel Drive (4WD) tractor
Series map:
4894
4994
300.0hp
400.0hp
Transmission
Typefull power shift
Gears12 forward and 2 reverse
Clutchhydraulic wet disc
Oil capacity63 qts
59.6 L
 59 qts (without PTO)
55.8 L
Oil type
Case Powergard PTF
Electronically-controlled Case power shift transmission operated with single control lever and inching pedal. The inching pedal must be depressed to move from park/neutral into first gear. Tractor must be moving in first gear before higher gears can be selected. Gear changes made by pushing control lever into upshift or downshift position. Control lever can be held in upshift/downshift position for multiple gear changes.

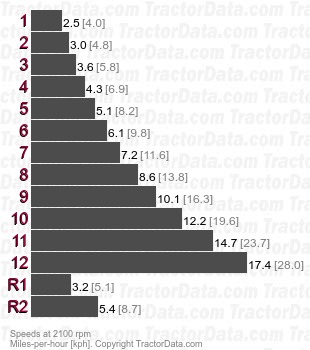

Speeds
With 20.5-32 tires
4994  full power shift speeds
