CaseIH 4994 Engine


CaseIH 4994 tractor photo
1984 - 1987
4WD 94 Series
Four-wheel Drive (4WD) tractor
Series map:
4894
4994
300.0hp
400.0hp
Engine Detail
Saab-Scania
turbocharged diesel
8-cylinder
liquid-cooled
Displacement866 ci
14.2 L
Bore/Stroke5.00x5.51 inches
127 x 140 mm
Power400 hp
298.3 kW
Air cleanerdual paper elements
Compression15.5:1
Rated RPM2100
Torque1140 lb-ft
1545.8 Nm
Torque RPM1300
Firing order1-5-4-2-6-3-7-8
Starter volts12
Coolant capacity88 qts
83.3 L
Intake valve clearance0.018 inches
0.457 mm
Exhaust valve clearance0.031 inches
0.787 mm
Engine Oil

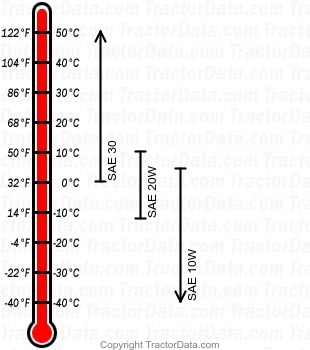

4994 diesel engine oil chart
Oil capacity27 qts
25.6 L
