Tractors > CaseIH > 4694

CaseIH 4694 Tests



CaseIH 4694 tractor photo
1984 - 1987
4WD 94 Series
Four-wheel Drive (4WD) tractor
Series map:
4494
4694
4894
213.0hp
261.0hp
300.0hp
Nebraska Tractor Test 1329

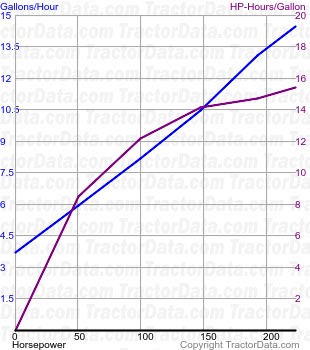

4694 fuel use from test 1329
Nebraska Tractor Test 1329
Diesel 12-speed 4WD
October 18 - 26, 1979
Link: Nebraska Tractor Test 1329 file
PTO performance
Power at rated engine speed219.62 hp
163.8 kW
Fuel use14.4 gal/hour
54.5 l/hour
Drawbar performance
Max power189.75 hp
141.5 kW
Fuel use14.2 gal/hour
53.7 l/hour
Gear 3-2 used for power test.
Max pull24,564 lbs
11142 kg
Gear 1-2 used for pull test.
