CaseIH 3220 Transmission


CaseIH 3220 tractor photo
1994 - 1997
3200 Utility Series
Utility tractor
Series map:
3220
3230
53.0hp
60.0hp
Transmission options
8-speed synchromesh
8-speed shuttle
16-speed partial power shift
16-speed synchromesh creeper
Transmission
Typesynchromesh
Gears8 forward and 4 reverse
Clutch11-inch dry cerametallic
 12-inch dry cerametallic (optional)
Oil capacity35.9 qts (2WD)
34.0 L
 38.6 qts (4WD)
36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse range.
Speeds
With 13.6x28 rear tires.

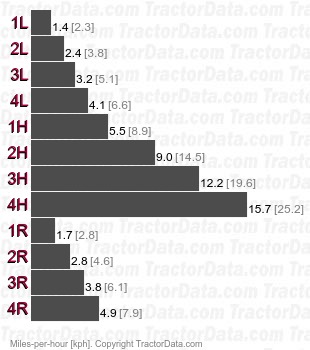

3220  synchromesh speeds
Transmission
Typeshuttle
Gears8 forward and reverse
Clutch11-inch dry cerametallic
 12-inch dry cerametallic (optional)
Oil capacity35.9 qts (2WD)
34.0 L
 38.6 qts (4WD)
36.5 L
Speeds
With 13.6x28 rear tires.

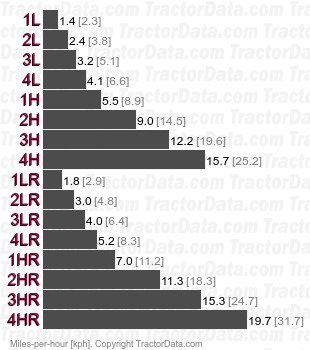

3220  shuttle speeds
Transmission
Typepartial power shift
Gears16 forward and 8 reverse
Clutch11-inch dry cerametallic
 12-inch dry cerametallic (optional)
Oil capacity35.9 qts (2WD)
34.0 L
 38.6 qts (4WD)
36.5 L
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.
Speeds
With 13.6x28 rear tires.

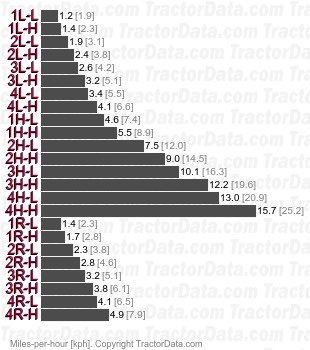

3220  partial power shift speeds
Shift Pattern
CaseIH 3220 transmission controls
Transmission
Typesynchromesh creeper
Gears16 forward and 8 reverse
Clutch11-inch dry cerametallic
 12-inch dry cerametallic (optional)
Oil capacity35.9 qts (2WD)
34.0 L
 38.6 qts (4WD)
36.5 L
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.
Speeds
With 13.6x28 rear tires. Speeds in direct mode same as regular synchromesh transmission.

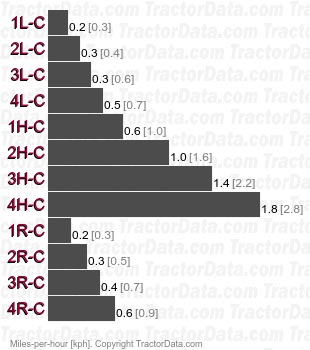

3220  synchromesh creeper speeds
