CaseIH 685 Tests


CaseIH 685 tractor photo
1985 - 1990
85 Utility Series
Utility tractor
Series map:
585
685
785
60.0hp
73.0hp
77.0hp
Nebraska Tractor Test 1604

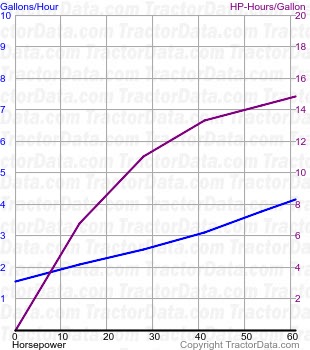

685 fuel use from test 1604
Nebraska Tractor Test 1604
Diesel 16-speed 2WD
October 7 - 14, 1986
Link: Nebraska Tractor Test 1604 file
PTO performance
Power at rated engine speed61.02 hp
45.5 kW
Fuel use4.2 gal/hour
15.9 l/hour
Power at rated PTO speed58.80 hp
43.8 kW
Fuel use4.0 gal/hour
15.1 l/hour
Drawbar performance
Max power52.90 hp
39.4 kW
Fuel use4.2 gal/hour
15.9 l/hour
Gear 1HDD used for power test.
Max pull7207 lbs
3269 kg
Gear 2LDD used for pull test.
