CaseIH 595 Transmission


CaseIH 595 tractor photo
1991 - 1994
95 Utility Series
Utility tractor
Series map:
495
595
695
53.0hp
60.0hp
72.0hp
Transmission options
8-speed partially synchronized
16-speed partial power shift
8-speed synchronized shuttle
16-speed creeper
Transmission
Typepartially synchronized
Gears8 forward and 4 reverse
Clutchdry disc
Oil capacity36 qts
34.1 L
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.
Speeds
With 16.9x30 rear tires.

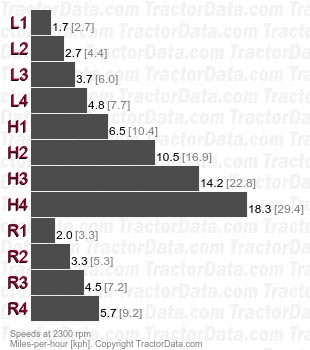

595  partially synchronized speeds
Transmission
Typepartial power shift
Gears16 forward and 8 reverse
Oil capacity36 qts
34.1 L
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.
Speeds
With 16.9x30 rear tires.

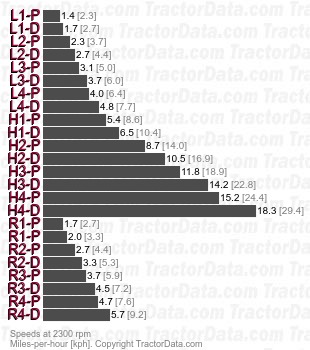

595  partial power shift speeds
Transmission
Typesynchronized shuttle
Gears8 forward and reverse
Oil capacity36 qts
34.1 L
Four gears each in high and low ranges, both forward and reverse.
Speeds
With 16.9x30 rear tires.

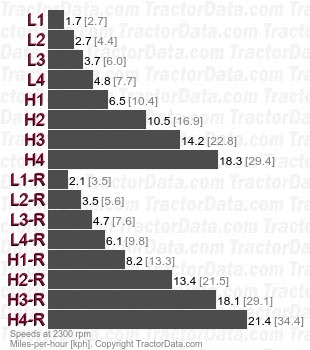

595  synchronized shuttle speeds
Transmission
Typecreeper
Gears16 forward and 8 reverse
Four gears with high, low, and reverse ranges plus direct or creeper mode.
Speeds
With 16.9x30 rear tires.

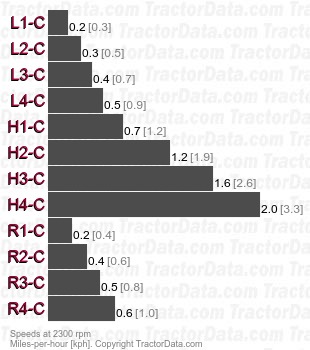

595  creeper speeds
