CaseIH 485 Transmission


CaseIH 485 tractor photo
1985 - 1991
85 Utility Series
Utility tractor
Series map:
385
485
585
43.0hp
53.0hp
60.0hp
Transmission options
8-speed synchromesh
16-speed partial power shift
Transmission
Typesynchromesh
Gears8 forward and 4 reverse
Four gears within each of high, low, and reverse ranges. Synchronized shifts within forward ranges.
Speeds
With 13.6x28 rear tires.

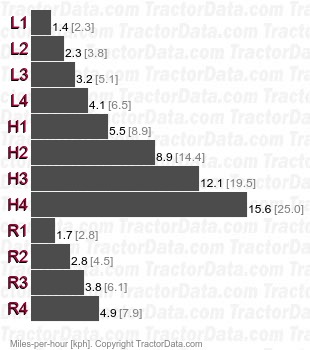

485  synchromesh speeds
Transmission
Typepartial power shift
Gears16 forward and 8 reverse
Four gears within each of high, low, and reverse ranges. Power shift between direct and lower speed for each gear.
Speeds
With 13.6x28 rear tires.

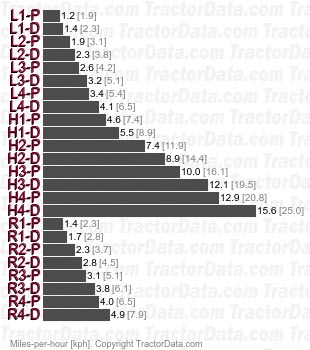

485  partial power shift speeds
