CaseIH 385 Transmission


CaseIH 385 tractor photo
1985 - 1990
85 Utility Series
Utility tractor
Series map:
385
485
43.0hp
53.0hp
Transmission options
8-speed synchromesh
16-speed partial power shift
8-speed power shuttle
Transmission
Typesynchromesh
Gears8 forward and 4 reverse

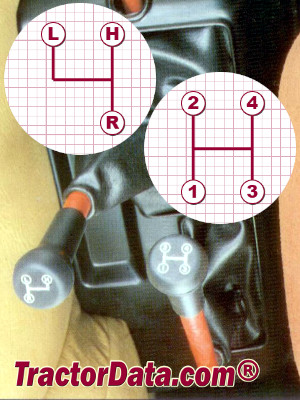

Four gears within each of high, low, and reverse ranges. Synchronized shifts within forward ranges.
Speeds
With 13.6x28 rear tires.

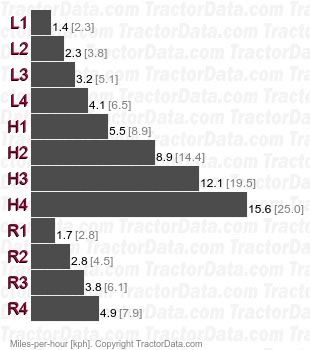

385  synchromesh speeds
Transmission
Typepartial power shift
Gears16 forward and 8 reverse
Four gears within each of high, low, and reverse ranges. Power shift between direct and lower speed for each gear.
Speeds
With 13.6x28 rear tires.

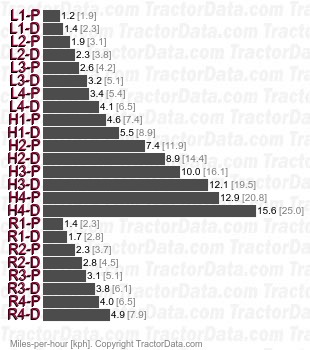

385  partial power shift speeds
Transmission
Typepower shuttle
Gears8 forward and reverse
Four gears within each of high and low ranges. Power shift direction change between forward and reverse.
Speeds
With 14.9x24 rear tires.

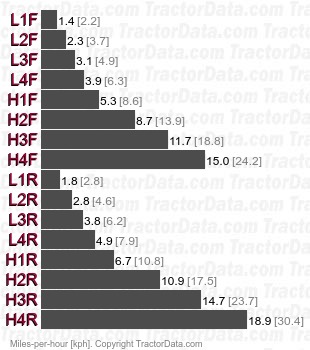

385  power shuttle speeds
