| | 1999 - 2002 |
| Magnum Series | | Row-Crop tractor |
|
Series map:
MX240
MX270
227.8hp*
261.1hp*
*Estimated engine power for comparison only.
| Engine Detail |
| CDC |
| turbocharged intercooled diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 504.5 ci
8.3 L
|
| Bore/Stroke | 4.488x5.315 inches
114 x 135 mm
|
| Air cleaner | dual paper elements
|
| Compression | 17.0:1
|
| Rated RPM | 2000
|
| Starter volts | 12
|

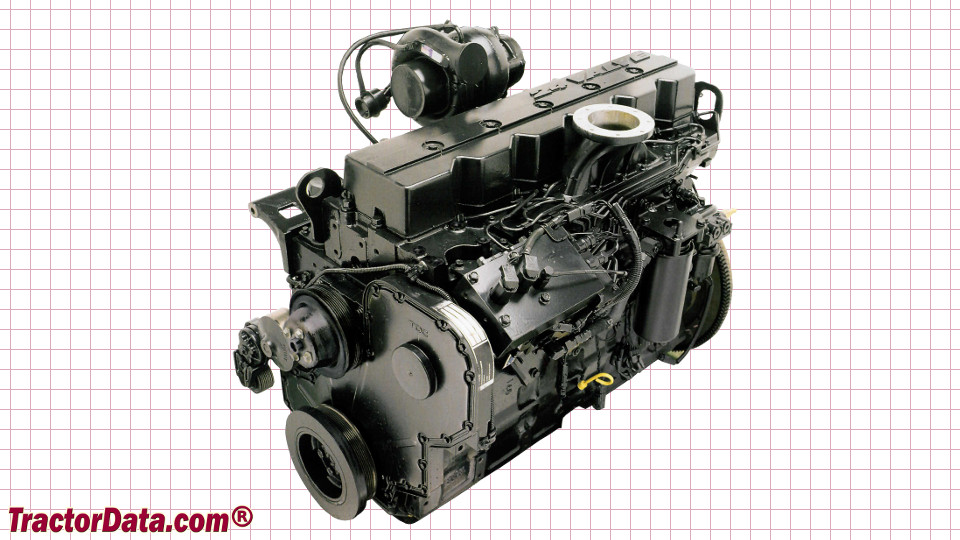

| CaseIH MX270 Engine |
 |
