CaseIH 234 Transmission


CaseIH 234 tractor photo
1985 - 1986
Compact Utility tractor
Mitsubishi built
Series map:
234
16.9hp*
*Estimated engine power for comparison only.
Transmission options
6-speed gear
hydrostatic
Transmission
Typegear
Gears6 forward and 2 reverse
Oil capacity12.4 qts
11.7 L
Three gears plus reverse with high and low ranges.

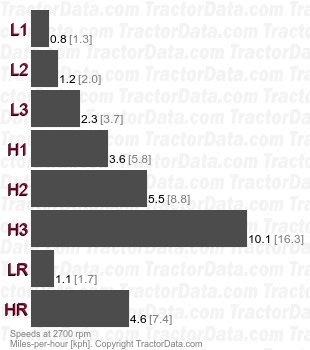

Speeds
With 8.00-18 rear tires.
234  gear speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse
