CaseIH MX220 Magnum
|
|
| Production | |
| Manufacturer | CaseIH |
| Row-Crop tractor | |
| Built in Racine, Wisconsin, USA | |
| Original price | $103,000 |
| CaseIH MX220 Engine | |
| CDC 8.3L 6-cyl diesel | |
 Engine details ... |
| CaseIH MX220 Transmissions | |
| 18-speed full power shift | |
| 24-speed creeper | |
 Transmission details ... |
| CaseIH MX220 Power | |
| PTO (claimed) | 185 hp 138.0 kW |
| Drawbar (tested) | 161.21 hp 120.2 kW |
| PTO (tested) | 209.25 hp 156.0 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | planetary |
| Differential lock | electro-hydraulic rear |
| Power steering | |
| Differential hydraulic wet disc brakes | |
| Surveyor Cab standard with air-conditioning. | |
| Photos | |
 | |
 CaseIH MX220 photos... | |
| Capacity | |
| Fuel | 130 gal 492.1 L |
| 160 galOptOptional 605.6 L | |
| Hydraulic system | 45.5 gal 172.2 L |
| Hydraulics | |
| Type | closed center PFC |
| Capacity | 45.5 gal 172.2 L |
| Pressure | 2500 psi 172.4 bar |
| Valves | 3 to 5 |
| Pump flow | 30 gpm 113.6 lpm |
| 44 gpmOptOptional 166.5 lpm | |
| SCV flow | 27 gpm 102.2 lpm |
| 40 gpmOptOptional 151.4 lpm | |
| Tractor hitch | |
| Rear Type | III/IIIN |
| Control | position and draft control |
| Rear lift | 11200 lbs 5080 kg |
| 14500 lbsOptOptional 6577 kg | |
| Front Hitch | II OptOptional |
| Front lift (at 24"/610mm) | 5500 lbs 2494 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| 5410/1000 (1.375)OptOptional | |
| Engine RPM | 540@1982 |
| 1000@1974 | |
| Dimensions & Tires | |
| 2WD Wheelbase | 119.2 inches 302 cm |
| 4WD Wheelbase | 118.3 inches 300 cm |
| Weight | 18700 to 20010 pounds |
| Front tire | 14L-16.1 |
| 2WD Rear tire | 18.4R46 |
 Full dimensions and tires ... | |

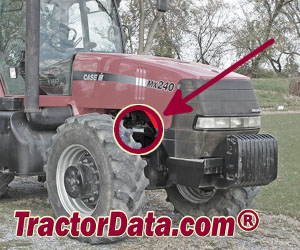

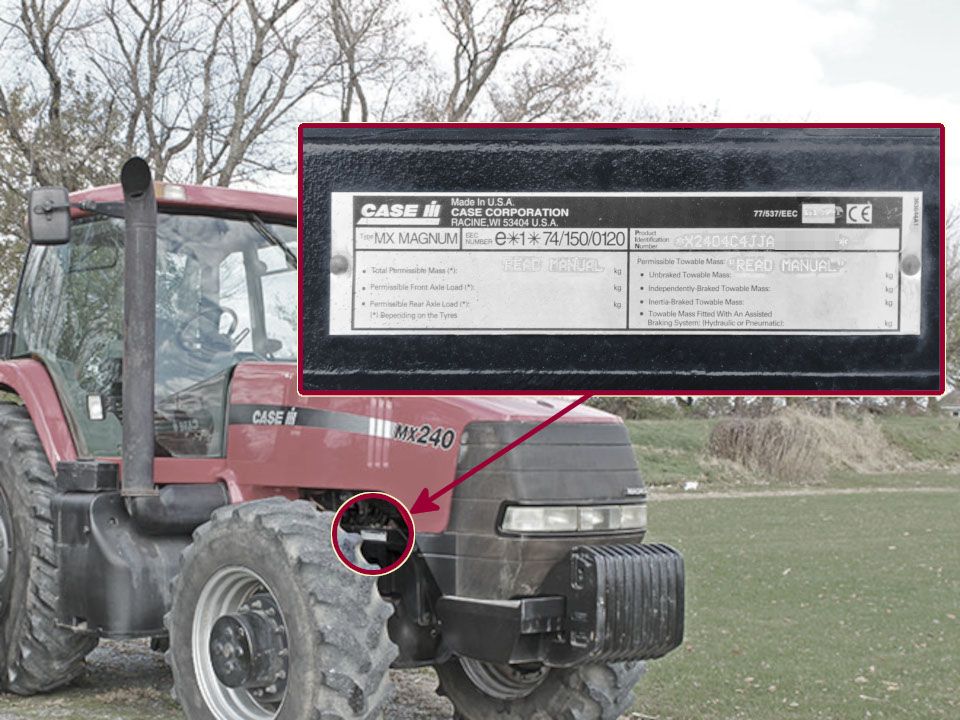

| MX220 Serial Number Location | |
 | |
| Serial number tag on the right side of the tractor frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 110 |
| 135 OptOptional | |
| Charging volts | 12 |
| Batteries | 2 |
| Battery CCA | 1000 |
| Battery volts | 12 |
| Battery Group | 31 |
| References | |
 | |
| MX Series Magnum Tractors published in 1998, by CaseIH | |
| Operator's Manual MX Series Magnum Tractors (Rac 6-5341) published in 1999 | |
| MX Series Magnum Sales Support Manual published in 1998, by Case IH* | |
| *Publication contains known errors. |
