Tractors > CaseIH > MX220 Magnum

CaseIH MX220 Magnum Tests



CaseIH MX220 Magnum tractor photo
1999 - 2002
Magnum Series
Row-Crop tractor
Series map:
MX200
MX220
MX240
183.3hp*
205.6hp*
227.8hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1766

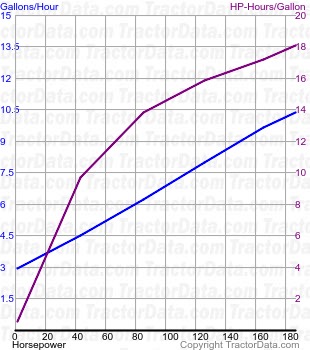

MX220 Magnum fuel use from test 1766
Nebraska Tractor Test 1766
Diesel 18-speed 4WD
October 8 - 26, 1999
Link: Nebraska Tractor Test 1766 file
PTO performance
Max power209.25 hp
156.0 kW
Fuel use10.7 gal/hour
40.5 l/hour
Power at rated engine speed186.63 hp
139.2 kW
Fuel use10.3 gal/hour
39.0 l/hour
Power at rated PTO speed190.30 hp
141.9 kW
Fuel use10.4 gal/hour
39.4 l/hour
Drawbar performance
Max power161.21 hp
120.2 kW
Fuel use10.4 gal/hour
39.4 l/hour
Gear 7 used for power test.
Max pull20,680 lbs
9380 kg
Gear 4 used for pull test.
