Tractors > CaseIH > MX200 Magnum

CaseIH MX200 Magnum Tests



CaseIH MX200 Magnum tractor photo
1999 - 2002
Magnum Series
Row-Crop tractor
Series map:
MX180
MX200
MX220
161.1hp*
183.3hp*
205.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1765

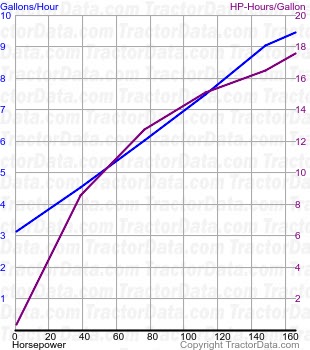

MX200 Magnum fuel use from test 1765
Nebraska Tractor Test 1765
Diesel 18-speed 4WD
October 21 - 26, 1999
Link: Nebraska Tractor Test 1765 file
PTO performance
Max power193.16 hp
144.0 kW
Fuel use10.0 gal/hour
37.9 l/hour
Power at rated engine speed165.75 hp
123.6 kW
Fuel use9.4 gal/hour
35.6 l/hour
Power at rated PTO speed170.84 hp
127.4 kW
Fuel use9.6 gal/hour
36.3 l/hour
Drawbar performance
Max power142.33 hp
106.1 kW
Fuel use9.5 gal/hour
36.0 l/hour
Gear 8 used for power test.
Max pull19,863 lbs
9009 kg
Gear 3 used for pull test.
