Tractors > CaseIH > MX180 Magnum

CaseIH MX180 Magnum Tests



CaseIH MX180 Magnum tractor photo
1999 - 2002
Magnum Series
Row-Crop tractor
Series map:
MX180
MX200
161.1hp*
183.3hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1764

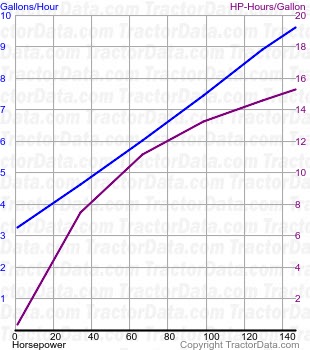

MX180 Magnum fuel use from test 1764
Nebraska Tractor Test 1764
Diesel 18-speed 4WD
October 12 - 26, 1999
Link: Nebraska Tractor Test 1764 file
PTO performance
Max power175.68 hp
131.0 kW
Fuel use10.6 gal/hour
40.1 l/hour
Power at rated engine speed146.54 hp
109.3 kW
Fuel use9.6 gal/hour
36.3 l/hour
Power at rated PTO speed150.99 hp
112.6 kW
Fuel use9.7 gal/hour
36.7 l/hour
Drawbar performance
Max power124.86 hp
93.1 kW
Fuel use9.6 gal/hour
36.3 l/hour
Gear 8 used for power test.
Max pull19,501 lbs
8845 kg
Gear 3 used for pull test.
