| | 1999 - 2002 |
| Magnum Series | | Row-Crop tractor |
|
Series map:
MX180
MX200
161.1hp*
183.3hp*
*Estimated engine power for comparison only.
| Engine Detail |
| CDC |
| turbocharged diesel |
| 6-cylinder 12-valve |
| liquid-cooled inline |
| Displacement | 504.5 ci
8.3 L
|
| Bore/Stroke | 4.488x5.315 inches
114 x 135 mm
|
| Fuel system | mechanical direct injection
|
| Air cleaner | dual paper elements
|
| Compression | 16.5:1
|
| Rated RPM | 2000
|
| Idle RPM | 900-2240
|
| Firing order | 1-5-3-6-2-4
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 24 qts
22.7 L
|

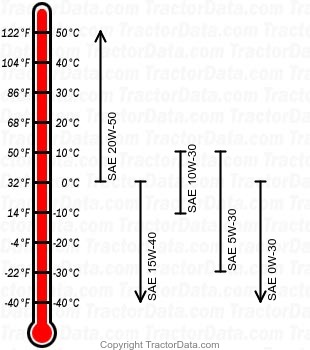

| Engine Oil |
|
| Oil capacity | 22 qts
20.8 L
|
| Oil change | 300 h
|

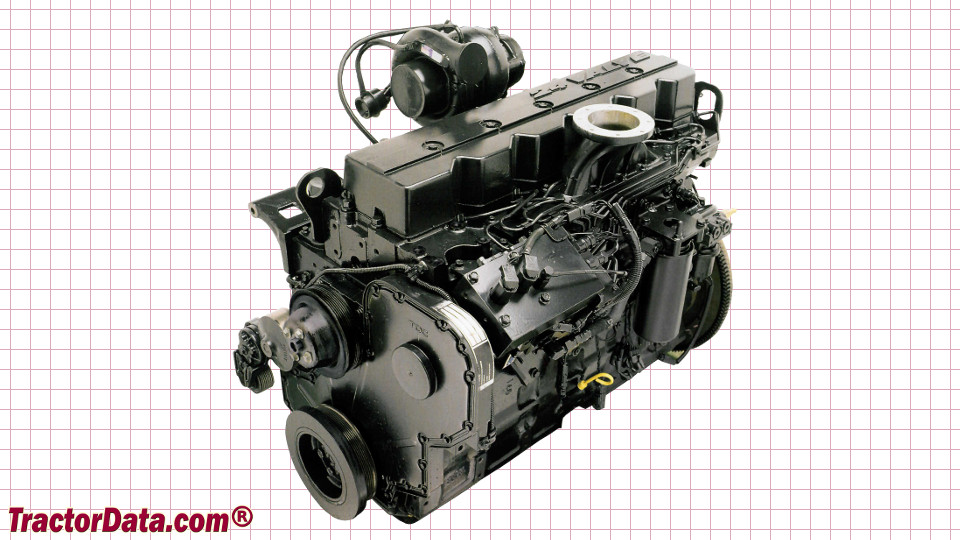

| CaseIH MX180 Engine |
 |
