| | 1998 - 2002 |
| Maxxum Series |
|
Series map:
MX135
MX150
MX170
135.0hp
144.4hp*
161.1hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Cummins/CDC |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 359 ci
5.9 L
|
| Bore/Stroke | 4.016x4.724 inches
102 x 120 mm
|
| Fuel system | direct injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectors
|
| Air cleaner | dual-element dry
|
| Compression | 17.5:1
|
| Rated RPM | 2200
|
| Starter volts | 12
|
| Oil capacity | 15.8 qts
15.0 L
|
| Coolant capacity | 21 qts
19.9 L
|

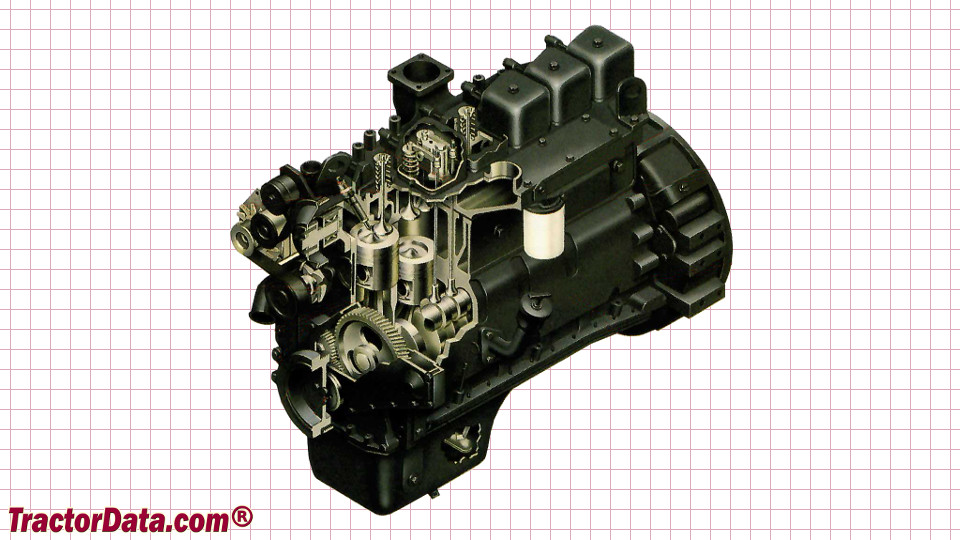

| CaseIH MX150 Engine |
 |
