CaseIH CX90
|
|
| Production | |
| Manufacturer | CaseIH |
| Utility tractor | |
| Built in Doncaster, England | |
| Original price | $32,200 (1999) |
| CaseIH CX90 Engine | |
| Perkins 4.0L 4-cyl diesel | |
 Engine details ... |
| CaseIH CX90 Transmissions | |
| 8-speed synchro shuttle | |
| 16-speed partial power shift | |
| 24-speed creeper | |
 Transmission details ... |
| CaseIH CX90 Power | |
| Engine (gross) | 90 hp 67.1 kW |
| Engine (net) | 84 hp 62.6 kW |
| PTO (claimed) | 74 hp 55.2 kW |
| Drawbar (tested) | 69.2 hp 51.6 kW |
| PTO (tested) | 79.7 hp 59.4 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Differential lock | electro-hydraulic |
| Steering | hydrostatic power |
| Differential hydraulic wet disc brakes | |
| Two-post ROPS with flat platform. Optional cab with air-conditioning. | |

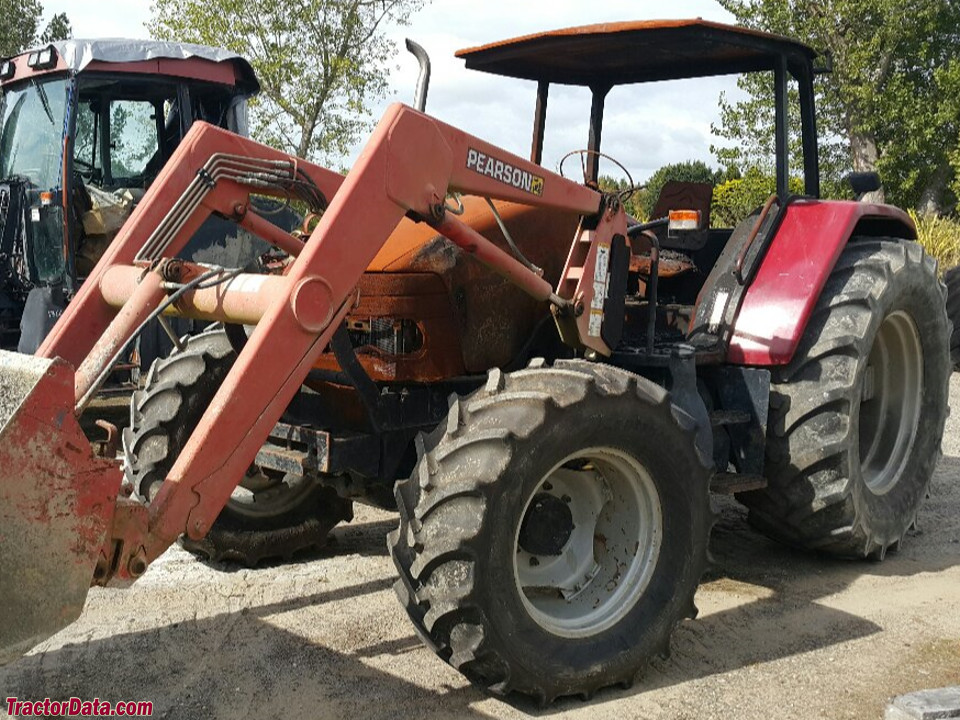

| Photos | |
 | |
 CaseIH CX90 photos... | |
| Capacity | |
| Fuel | 42 gal 159.0 L |
| Hydraulic system | 9.1 gal (2WD) 34.4 L |
| 9.8 gal (4WD) 37.1 L | |
| Hydraulics | |
| Type | open center |
| Capacity | 9.1 gal (2WD) 34.4 L |
| 9.8 gal (4WD) 37.1 L | |
| Pressure | 2500 psi 172.4 bar |
| Valves | 0 to 3 |
| Pump flow | 15.7 gpm 59.4 lpm |
| Total flow | 24.2 gpm (total) 91.6 lpm |
| 15.7 gpm (main pump) 59.4 lpm | |
| 8.5 gpm (lube pump) 32.2 lpm | |
| Tractor hitch | |
| Rear Type | II/I |
| Control | electronic upper link |
| Rear lift | 3,665 lbs 1662 kg |
| 5,097 lbs (optional) 2311 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540 |
| 540/1000 (optional dual shaft) | |
| Dimensions & Tires | |
| Wheelbase | 92.3 inches (2WD) 234 cm |
| 93.7 inches (4WD) 237 cm | |
| Weight | 7396 to 8466 pounds |
| Front tire | 7.50-16 |
| Rear tire | 16.9-30 |
 Full dimensions and tires ... | |
| CX90 Serial Numbers | |
| Location: | Near the tractor steering column on right side. |
| 1998 | JJE1000056 |
| 1999 | JJE1008492 |
| 2000 | JJE1013490 |
| 2001 | JJE1017672 |
| 2002 | JJE1019985 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 65 |
| Battery CCA | 650 |
| 810 (optional) | |
| Battery volts | 12 |
| References | |
 | |
| CX Series Tractors published in 1997, by CaseIH |
