CaseIH CX80 Transmission


CaseIH CX80 tractor photo
1998 - 2002
CX Utility Series
Utility tractor
Series map:
CX70
CX80
CX90
73.0hp
84.0hp
90.0hp
Transmission options
8-speed synchro shuttle
16-speed partial power shift
24-speed creeper
Transmission
Typesynchro shuttle
Gears8 forward and reverse
Clutch12-inch dry disc
Oil capacity36.4 qts (2WD)
34.4 L
 39.1 qts (4WD)
37.0 L
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever.
Transmission
Typepartial power shift
Gears16 forward and 8 reverse
Clutch12-inch dry disc
Oil capacity36.4 qts (2WD)
34.4 L
 39.1 qts (4WD)
37.0 L
Four gears (1-4) in two ranges (low/high) with push-button power shift on the gear shift lever. Left-hand shuttle lever on the steering column.

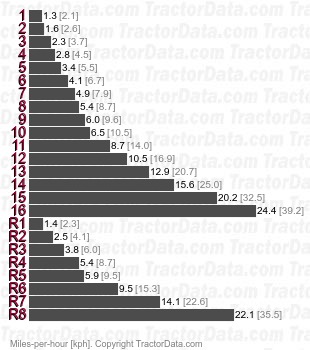

Speeds
CX80  partial power shift speeds

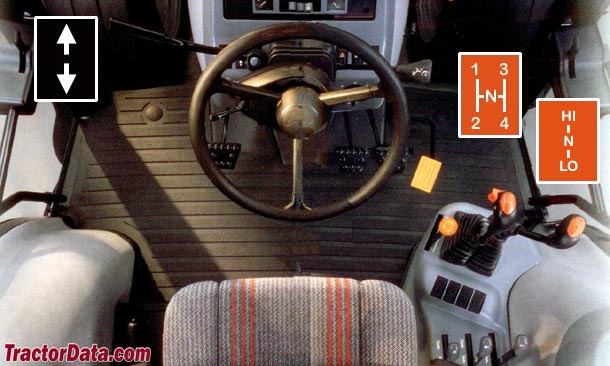

Shift Pattern
CaseIH CX80 transmission controls
Transmission
Typecreeper
Gears24 forward and 12 reverse
