CaseIH CX70 Tests


CaseIH CX70 tractor photo
1998 - 2002
CX Utility Series
Utility tractor
Series map:
CX60
CX70
CX80
64.0hp
73.0hp
84.0hp
OCED Tractor Test 1895

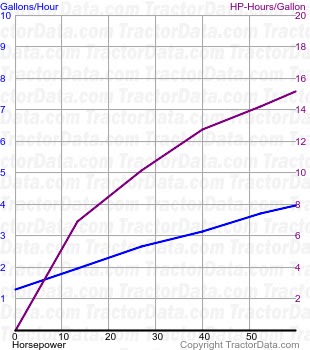

CX70 fuel use from test 326
OCED Tractor Test 1895
Diesel 16-speed 4WD
October 1998 - November 1998,
Link: OCED Tractor Test 1895 file
PTO performance
Power at rated engine speed59.7 hp
44.5 kW
Fuel use3.9 gal/hour
14.8 l/hour
Power at rated PTO speed62.1 hp
46.3 kW
Fuel use3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power50.2 hp
37.4 kW
Fuel use4.0 gal/hour
15.1 l/hour
Gear 3-Low-Direct used for power test.
Max pull9,485 lbs
4302 kg
Gear 1-Low-TA used for pull test.
