Leyland 270
| | 1972 - 1976 |
| Utility tractor |
|
Series map:
255
270
44.7kw
55.9kw
| Production |
| Manufacturer | Leyland
|
| Utility tractor |
| Leyland 270 Power |
| Engine (gross) | 75 hp
55.9 kW
|
| Engine (net) | 71 hp
52.9 kW
|
| PTO (claimed) | 65 hp
48.5 kW
|
| Mechanical |
| Two-wheel drive |
| Steering | power assist
|
| Mechanical dry disc brakes |
| Open operator station. Cab available. |
| Capacity |
| Fuel | 18 gal
68.1 L
|
| Hydraulic system | 14.8 gal
56.0 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 14.8 gal
56.0 L
|
| Pressure | 2610 psi
180.0 bar
|
| Pump flow | 7.9 gpm
29.9 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Rear lift | 4012 lbs
1819 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| Engine RPM | 540@1813
|

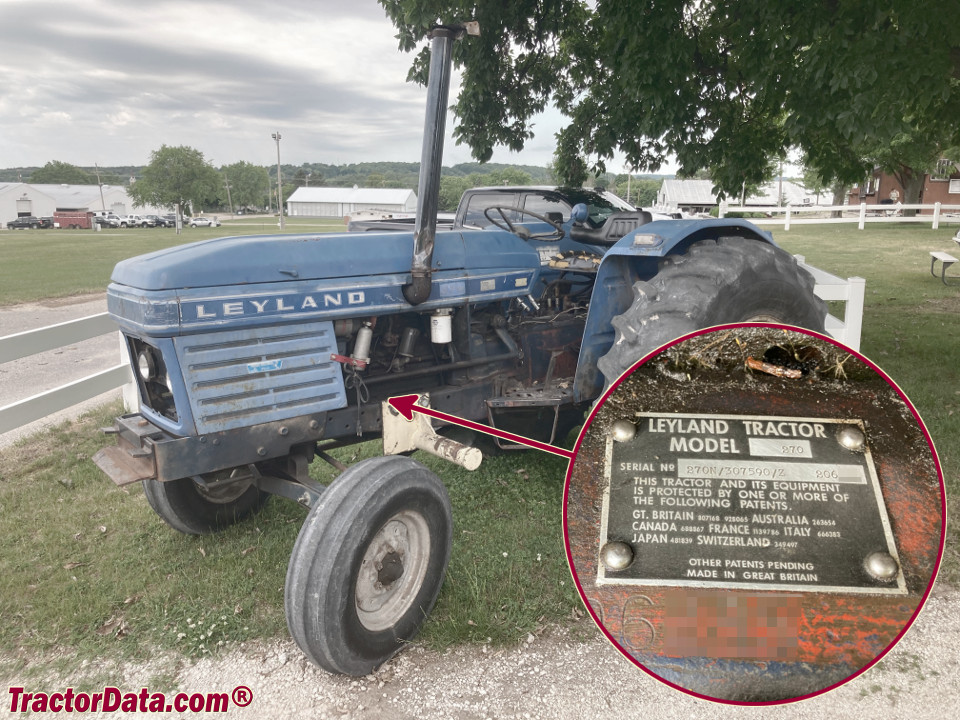

| 270 Serial Number Location |
 |
| Serial number plate on top of the tractor frame on the left side |
| References |
 |
| 245 - 255 - 270 published by Leyland |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on December 29, 2021 |
