Ferguson TO-35 Engine


Ferguson TO-35 tractor photo
1954 - 1960
Utility tractor
Series map:
TO-35
36.6hp*
*Estimated engine power for comparison only.
Engine options
Continental 2.2L 4-cyl gasoline
Standard Diesel Company 2.3L 4-cyl diesel
Engine Detail
Continental Z-134
gasoline
4-cylinder
liquid-cooled
Displacement134 ci
2.2 L
Bore/Stroke3.3125x3.875 inches
84 x 98 mm
Fuel use2.761 gal/hour
10.5 l/hour
Air cleaneroil bath
Compression6.6:1
Rated RPM2000
Starter volts6 (early)
 12 *The 12V starter was first used on tractor serial number 161250.
Coolant capacity10 qts
9.5 L
Ferguson TO-35 Engine

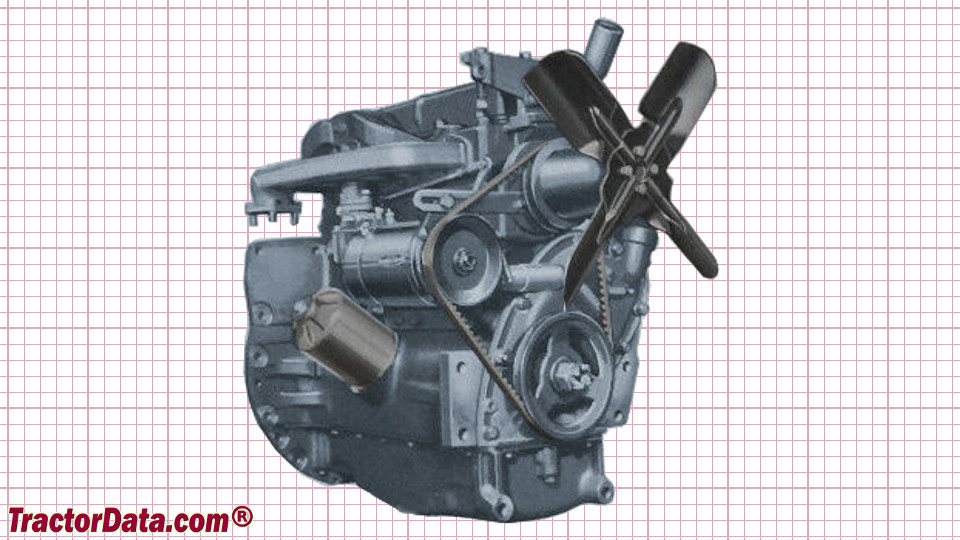

Ferguson TO-35 engine image
Engine Detail
Standard Diesel Company 23C
diesel
4-cylinder
liquid-cooled vertical L-head
The 23C diesel engine was first available in the TO-35 in 1958.
Displacement137.8 ci
2.3 L
Bore/Stroke3.3125x4.00 inches
84 x 102 mm
Fuel use2.249 gal/hour
8.5 l/hour
Air cleaneroil bath
Pre-heatingglow plugs
Compression20:1
Rated RPM2000
Firing order1-3-4-2
Starter volts12
Coolant capacity9 qts
8.5 L
Intake valve clearance0.012 inches (cold)
0.305 mm
Exhaust valve clearance0.008 inches (cold)
0.203 mm
Engine Oil

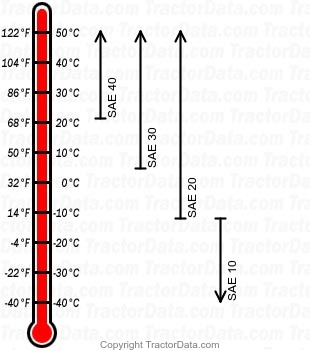

TO-35 diesel engine oil chart
Oil capacity7.5 qts
7.1 L
