Tractors > Ferguson > TO-30

Ferguson TO-30 Engine



Ferguson TO-30 tractor photo
1951 - 1954
Utility tractor
Series map:
TO-30
31.1hp*
*Estimated engine power for comparison only.
Engine Detail
Continental Z-129
gasoline
4-cylinder 8-valve
liquid-cooled I-head
Displacement129 ci
2.1 L
Bore/Stroke3.25x3.875 inches
83 x 98 mm
Fuel systemMarvel Schebler TSX 458 updraft carburetor
Air cleaneroil bath
Compression6.5:1
Rated RPM2000
Torque107 lb-ft
145.1 Nm
Torque RPM1100
StarterDelco 1109457
Starter volts6
Coolant capacity10 qts
9.5 L
SparkplugAC Delco 86
 Champion 8
Intake valve clearance0.015 inches (cold)
0.381 mm
Exhaust valve clearance0.015 inches (cold)
0.381 mm
Engine Oil

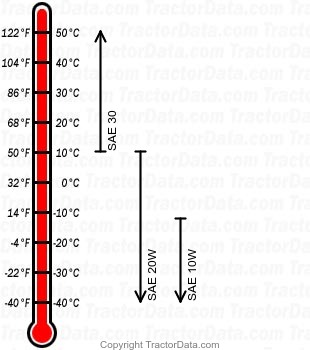

TO-30 gasoline engine oil chart
Oil capacity5 qts (crankcase)
4.7 L
 1 qts (filter)
0.9 L

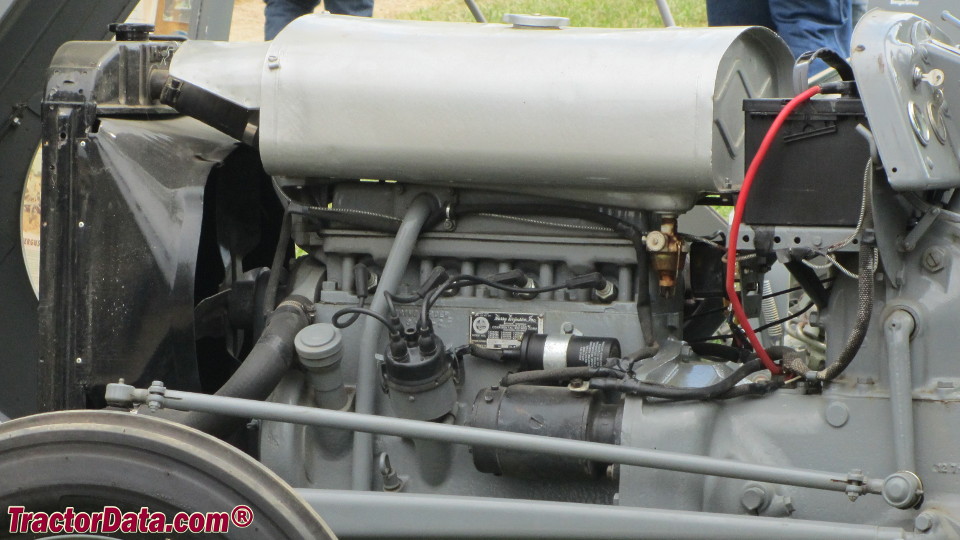

Ferguson TO-30 Engine
Ferguson TO-30 engine image
